Fluke | Digital Multimeter

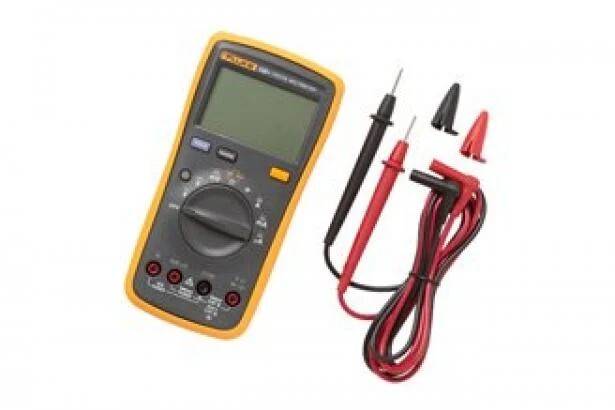

Fluke 15B+ Digital Multimeter

The Fluke 15B+ Digital Multimeter offers precise measurements with a wide range of testing capabilities including AC/DC voltage, current, resistance, and capacitance. This reliable multimeter is ideal for both professionals and DIY enthusiasts, featuring an easy-to-read display and built-in safety features for a variety of electrical applications..

  • Detail
  • Special Features
  • Specification

  • Accuracy: ±(% of Reading + Number of Least Significant Digits)

  • Display: 4000 counts with 3/sec updates

  • Battery Life: Up to 500 hours with 2 AA batteries

  • Size: 183 x 91 x 49.5 mm

  • Weight: 455g

  • IP Rating: IP40

  • Drop Test: 2 meter (6.5 ft)

  • Measurement Functions: AC/DC voltage, current (up to 10A), resistance, capacitance, and diode test

  • Safety: CAT III 600V rating

  • Warranty: Limited lifetime

  • Wide Range of Measurements: Measures AC/DC voltage, current, resistance, capacitance, and more.

  • Compact and Durable: Designed to withstand tough environments with a robust build.

  • Backlit Display: Ensures easy reading in low-light conditions.

  • Safety Features: Includes CAT III 600V safety rating for enhanced protection during use.

  • Data Hold: Keeps readings on the display even after disconnecting the probes.

Function Range Resolution Accuracy
AC volts (40 Hz to 500Hz) 4.000 V 0.001 V ±(1.0% + 3)
  40.00 V 0.01 V
  400.0 V 0.1 V ±(2.0% + 3)
  1000 V 1 V
DC volts 4.000 V 0.001 V ±(0.5% + 3)
  40.00 V 0.01 V
  400.0 V 0.1 V
  1000 V 1 V
AC millivolts 400.0 mV 0.1 mV ±(3.0% + 3)
DC millivolts 400.0 mV 0.1 mV ±(1.0% + 10)
Resistance 600.0 Ω 0.1 Ω ±(0.5% + 3)
  6.000 kΩ 0.001 kΩ
  60.00 kΩ 0.01 kΩ ±(0.5% + 2)
Capacitance 1000 nF 1 nF ±(2% + 5)
  10.00 μF 0.01 μF
  100.0 μF 0.1 μF
AC current μA (40 Hz to 400 Hz) 400.0 μA 0.1 μA ±(1.5% + 3)
AC current mA (40 Hz to 400 Hz) 40.00 mA 0.01 mA
  400.0 mA 0.1 mA
AC current A (40 Hz to 400 Hz) 4.000 A 0.001 A ±(1.5% + 3)
DC current μA 400.0 μA 0.1 μA ±(1.5% + 3)
DC current mA 40.00 mA 0.01 mA
  400.0 mA 0.1 mA
DC current A 4.000 A 0.001 A

Environmental Specifications:

  • Operating Temperature: 0 °C to 40 °C

  • Storage Temperature: -30 °C to +60 °C

  • Operating Humidity: 0 % to 90 %, 10 °C to 30 °C

  • Storage Humidity: 0 % to 75 %, 30 °C to 40 °C

  • Altitude: Operating: 2000 m, Storage: 12,000 m

Warranty and Protection:

  • Overvoltage Category: CAT III 600V, Pollution Degree 2

  • Drop Test: 2 meter (6.5 ft)

  • Ingress Protection: IP40

  • Electromagnetic Compatibility: IEC 61326-1: Portable EMC Environment, Class A equipment

  • Warranty: Limited lifetime

Mechanical and General Specifications:

  • Counts: 4000

  • Size: 183 x 91 x 49.5 mm

  • Weight: 455g

  • Battery Life: 500 hours (without backlight)
